Product Summary

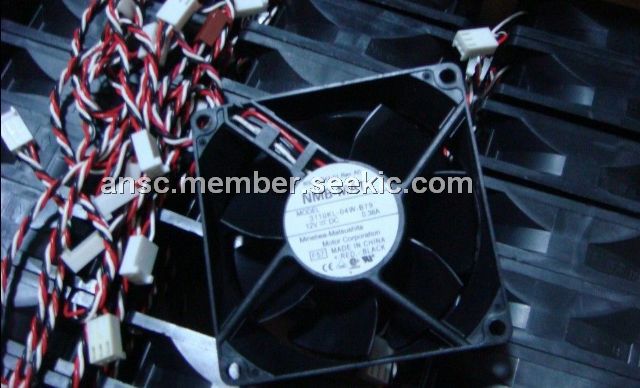

The 3110KL-04W-B79 is a fan with locked rotor sensor.
Parametrics
Characteristics: (1)Voltage - Rated: 12VDC; (2)Power (Watts): 3.86W; (3)Bearing Type: Ball; (4)Size / Dimension Square: 80mm L x 80mm H x 25mm W; (5)Air Flow: 45.9 CFM (1.30m³/min); (6)Termination: 3 Wire Leads; (7)Fan Type: Tubeaxial; (8)Noise: 40 dB; (9)RPM: 4000 RPM; (10)Static Pressure: 0.258 in H2O (64.4 Pa); (11)Weight: 0.209 lbs (95.00g); (12)Current Rating: 290mA; (13)Voltage Range: 6.0 to 13.8VDC; (14)Operating Temperature: 14 to 140°F (-10 to 60℃); (15)Life Expectancy: 70000 hrs @ 25℃; (16)Lead Free: Status Lead Free; (17)RoHS Status: RoHS Compliant.
Features
Features: (1)Voltage: 12V 0.38A; (2)Unit Type: piece; (3)Package Weight: 1.0kg (2.20lb.); (4)Package Size: 16cm x 16cm x 6cm (6.30in x 6.30in x 2.36in).
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3110KL-04W-B79 |
|
FAN DC AXIAL 12V 80X25 |
Data Sheet |
Negotiable |
|
||||||||||||
