Product Summary

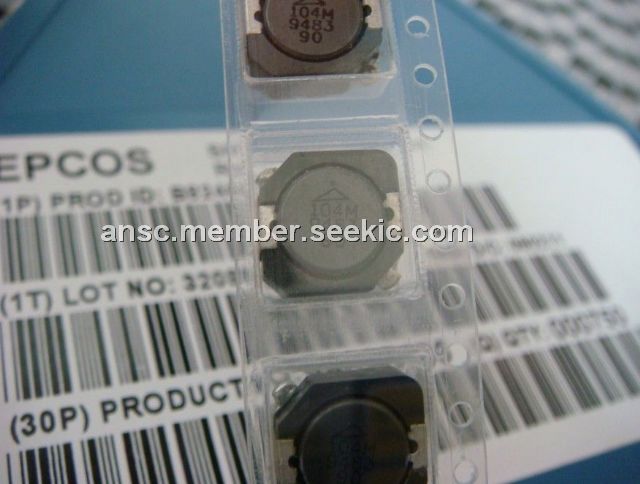

The B82464-G4104M is a 10.4 × 10.4 × 4.8 (mm) SMT power inductor. There is a ferrite core, magnetically shielded. And the winding is enamel copper wire. The winding welded to terminals.

Parametrics

Absolute maximum ratings: (1)Rated inductance: LR Measured with impedance analyzer Agilent 4294A at frequency fL, 0.1 V, 20℃; (2)Rated temperature TR: 85℃; (3)Rated current IR: Max. permissible DC with temperature increase of ≤40K at rated temperature; (4)Saturation current Isat: Max. permissible DC with inductance decrease ΔL/L0 of approx. 10%; (5)DC resistance Rmax: Measured at 20℃; (6)Solderability (lead-free): Dip and look method Sn95.5Ag3.8Cu0.7; (7)Resistance to soldering heat: 260℃, 40s (as referenced in JEDEC J-STD 020C); (8)Climatic category: 55/150/56 (to IEC 60068-1); (9)Storage conditions Mounted: –55℃ to +150℃; (10)Packaged: –25℃ to +40℃, ≤75% RH; (11)Weight Approx: 2g.

Features

Features: (1)Temperature range up to 150℃; (2)High rated current; (3)Low DC resistance; (4)Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020C; (5)Qualified to AEC-Q200; (6)RoHS-compatible.

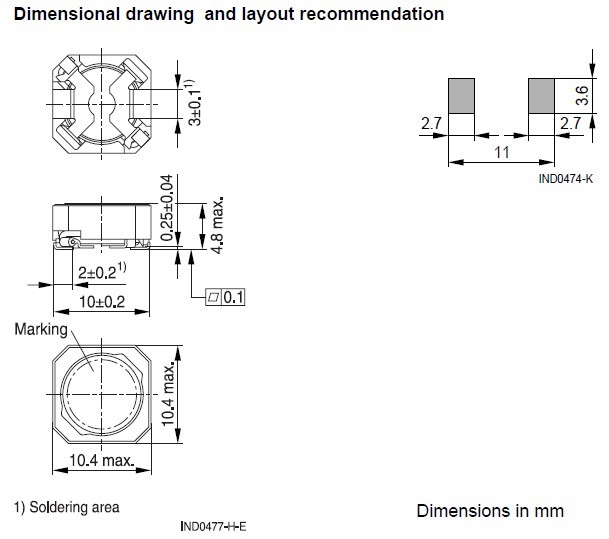

Diagrams

B82412-A
B82412-A
