Product Summary
The DS35-12A is a rectifier diode and avalanche diode.
Parametrics
Absolute maximum ratings: (1)IF(RMS), TVJ = TVJM: 80A; (2)IF(AVM), Tcase = 100℃; 180℃ sine: 49A; (3)PRSM, DSA(I) types, TVJ=TVJM, tp=10us: 11kW; (4)IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 650A; (5)IFSM, VR = 0, t = 8.3 ms (60 Hz), sine: 690 A; (6)IFSM, TVJ = TVJM, t = 10 ms (50 Hz), sine: 600 A; (7)IFSM, VR = 0, t = 8.3 ms (60 Hz), sine: 640 A; (8)I2t, TVJ = 45℃, t = 10 ms (50 Hz), sine: 2100 A2s; (9)I2t, VR = 0 t = 8.3 ms (60 Hz), sine: 2000 A2s; (10)I2t, TVJ = TVJM t = 10 ms (50 Hz), sine: 1800 A2s; (11)I2t, VR = 0 t = 8.3 ms (60 Hz), sine: 1700 A2s; (12)TVJ: -40 to +180℃; (13)TVJM: 180℃; (14)Tstg: -40 to +180℃; (15)Md, Mounting torque: 4.5-5.5 Nm; (16)Md: 40-49 lb.in.; (17)Weight: 15g.
Features
Features: (1)International standard package, JEDEC DO-203 AB (DO-5); (2)Planar glassivated chips; (3)High power rectifiers; (4)Field supply for DC motors; (5)Power supplies; (6)Space and weight savings; (7)Simple mounting; (8)Improved temperature and power cycling; (9)Reduced protection circuits.

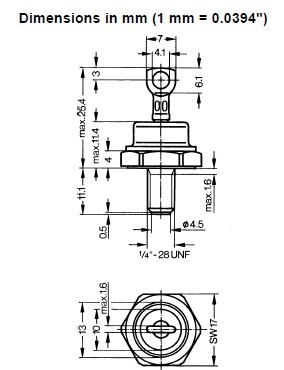

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS35-12A |
Ixys |
Rectifiers 35 Amps 1200V |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|

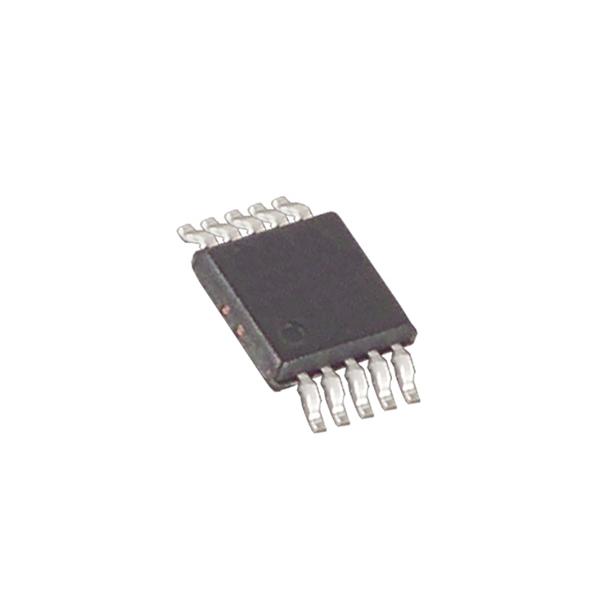

DS3501K |
