Product Summary

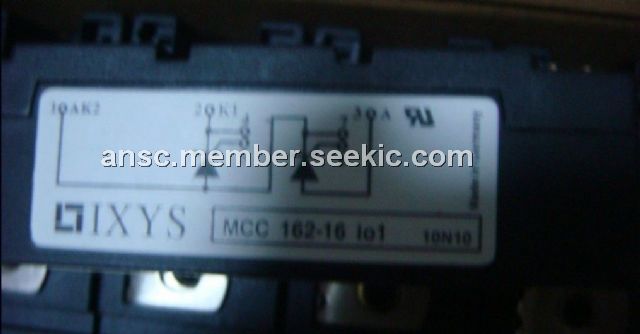

The MCC162-16IO1 is a thyristor module of MCC 162 series. It take advantages in following aspects, such as space and weight savings, simple mounting, improved temperature and power cycling, reduced protection circuits.
Parametrics
Absolute maximum ratings: (1)ITRMS, IFRMS, TVJ=TVJM: 300A; (2)ITAVM, IFAVM, TC = 80℃, 180° sine: 190A; (3)ITAVM, TC = 85℃; 180° sine: 181A; (4)(di/dt)cr, TVJ=TVJM, repetitive, IT=500A, f=50Hz, tP=200us, VD=2/3VDRM: 150 A/us; (5)(di/dt)cr, IG = 0.5A, non repetitive, IT = 500A, diG/dt = 0.5 A/us, VD = 2/3 VDRM: 500A/us; (6)(dv/dt)cr, TVJ=TVJM, VDR=2/3VDRM, RGK =∞, method 1 (linear voltage rise): 1000V/us; (7)PGM, TVJ=TVJM, tP=30us: 120W; (8)PGM, IT=ITAVM, tP = 500us: 60W; (9)PGAV: 8W; (10)VRGM: 10V; (11)TVJ: -40 to +125℃; (12)TVJM: 125℃; (13)Tstg: -40 to +125℃; (14)VISOL, 50/60Hz, RMS, t=1min: 3000V; (15)VISOL, IISOL≦mA, t=1s: 3600V; (16)Md, Mounting torque(M6): 2.25-2.75/20-25 Nm/lb.in.; (17)Md, Terminal connection torque (M6): 4.5-5.5/40-48 Nm/lb.in.; (18)Weight, Typical including screws: 125g.
Features
Features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCC162-16io1 |
Ixys |
Discrete Semiconductor Modules 162 Amps 1600V |
Data Sheet |
Negotiable |
|
||||||
